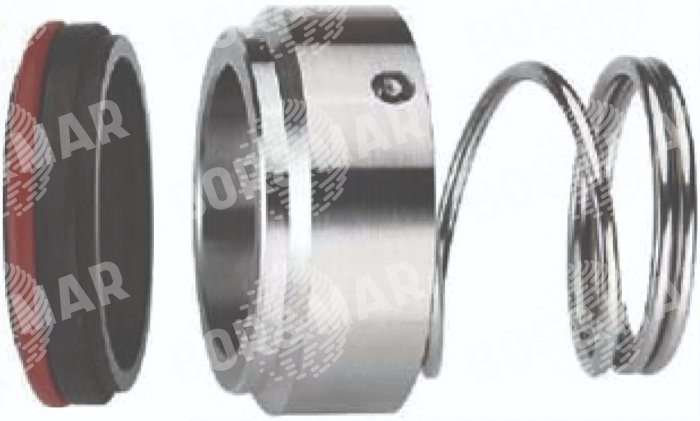

Торцевое уплотнение MSBT-RN
Цена по запросу
Характеристики торцевого уплотнения MSBT-RN
| Давление P, Мпа | 0…1,0 |
| Температура t, °C | - 40 °C …+220 °C |
| Скорость скольжения, м/c | 15 |
Описание
Таблица размеров
| Размер, спецификация | d1, мм | d3, мм | d6, мм | d7, мм | L3, мм | L4, мм |
| MSBT-RN-8 | 8 | 16 | 13.0 | 17.1 | 15 | 5.5 |
| MSBT-RN-10 | 10 | 20 | 14.0 | 18.1 | 15 | 5.5 |
| MSBT-RN-12 | 12 | 21 | 16.5 | 20.6 | 18 | 5.5 |
| MSBT-RN-14 | 14 | 23 | 19.0 | 23.1 | 22 | 6.0 |
| MSBT-RN-15 | 15 | 24 | 21.0 | 26.9 | 22 | 7.0 |
| MSBT-RN-16 | 16 | 26 | 21.0 | 26.9 | 23 | 7.0 |
| MSBT-RN-17 | 17 | 26 | 21.0 | 26.9 | 23 | 7.0 |
| MS3T-RN-13 | 18 | 29 | 25.0 | 30.9 | 24 | 8.0 |
| MSB! RN-19 | 19 | 29 | 25.0 | 30.9 | 25 | 8.0 |
| MSBT-RN-20 | 20 | 31 | 25.0 | 30.9 | 25 | 8.0 |
| MSBT-RN-22 | 22 | 33 | 30.0 | 35.4 | 25 | 8.0 |
| MSBT-RN-24 | 24 | 35 | 30.0 | 35.4 | 27 | 8.0 |
| MSBT-RN-25 | 25 | 36 | 33.0 | 38.2 | 27 | 8.5 |
| MSBT-RN-26 | 26 | 36 | 33.0 | 38.2 | 27 | 8.5 |
| MSBT-RN-28 | 28 | 40 | 38.0 | 43.3 | 29 | 9.0 |
| MSBT-RN-30 | 30 | 43 | 38.0 | 43.3 | 30 | 9.0 |
| MSBT-RN-32 | 32 | 46 | 38.0 | 43.3 | 30 | 9.0 |
| MSBT-RN-33 | 33 | 47 | 45.0 | 53.5 | 39 | 11.5 |
| MSBT-RN-35 | 35 | 49 | 45.0 | 53.5 | 39 | 11.5 |
| MSBT-RN-38 | 38 | 53 | 52.0 | 60.5 | 39 | 11.5 |
| MSBT-RN-40 | 40 | 56 | 52.0 | 60.5 | 39 | 11.5 |
| MSBT-RN-42 | 42 | 59 | 52.0 | 60.5 | 39 | 11.5 |
| MSBT-RN-43 | 43 | 59 | 52.0 | 60.5 | 39 | 11.5 |
| MSBT-RN-45 | 45 | 61 | 57.0 | 65.5 | 41 | 11.5 |
| MSBT-RN-48 | 48 | 64 | 57.0 | 65.5 | 41 | 11.5 |
| MSBT-RN-50 | 50 | 66 | 64.0 | 72.5 | 45 | 11.5 |
| MSBT-RN-55 | 55 | 71 | 64.0 | 72.5 | 47 | 11.5 |
| MSBT-RN-60 | 60 | 78 | 72.0 | 79.3 | 49 | 11.5 |
| MSBT-RN-65 | 65 | 84 | 77.0 | 84.5 | 51 | 11.5 |
| MSBT-RN-70 | 70 | 90 | 82.0 | 89.5 | 51 | 11.5 |
| MSBT-PN-75 | 75 | 98 | 87.0 | 94.5 | 57 | 11.5 |
| MSCT-RM-80 | 80 | 100 | 92.0 | 99.5 | 59 | 11.5 |
| MSET-RN-85 | 85 | 109 | 98.0 | 105.5 | 59 | 13.5 |
| MSBT-RN-90 | 90 | 114 | 105.0 | 111.5 | 62 | 13.5 |
| MSBT-RN-95 | 95 | 119 | 110.0 | 116.5 | 62 | 13.5 |
| MSBT-RN-100 | 100 | 124 | 114.0 | 119.5 | 75 | 13.5 |
